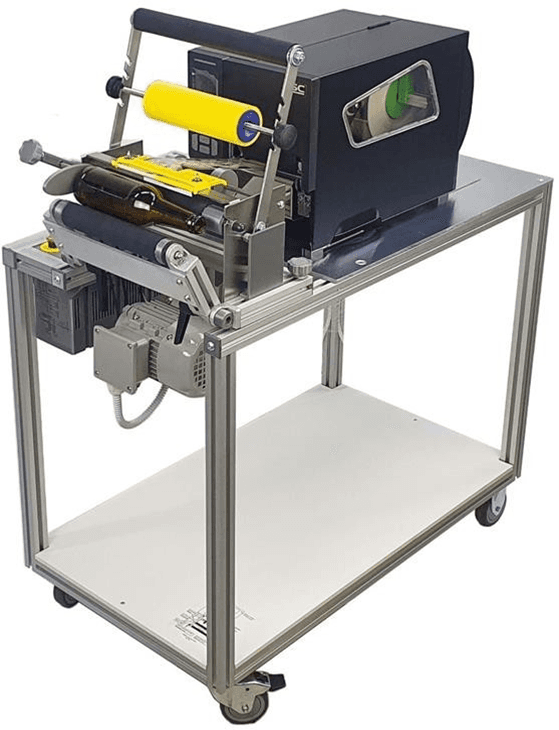

Manual bottle labeling machine ET-02 S

Manual bottle labeling machine ET-02 S has three functions: it can only stick labels, can only print labels, can print and stick.

Features

The bottle labeler has an aluminum-metal casing with integrated economical thermo transfer industrial printer and is manufactured according to CE standards.

Printer TSC MB 240T has the capacity of 600 m of thermo transfer tape, DT/TT, printing speed up to 8 Ips, LCLD touchscreen and resolution of 200 dpi, Real Time Clock in standard. Possibility to print Barcodes. Different bottle sizes and shapes, simple and fast tape changing and calibration.

Labels must be made in a roll (suitable for thermal transfer print). They can be pre-printed, white or black…, printable in different colors (ribbon color selection) or directly on thermal paper, printed via a graphics program supported by the system windows OS. Windows OS is not included in the price of the labeling unit).

A program for label designing Bartender is included in the price. It must be installed on a laptop computer provided by the customer.

Standout benefits

  • ability to print barcodes,

  • adjust different bottle sizes,

  • easy and quick label replacement and calibration.

Technical characteristic

Filling device dimensions:

  • Height: 1030mm,

  • Depth: 840mm,

  • Width: 460mm

Power supply:

  • Voltage: 110-240 V

  • El. current: 2 A,

  • Frequency: 50 Hz

Included in the package

  • integrated economical thermal transfer industrial printer.

  • TSC MB 240T which housing made of metal, with 3.5 color LCD touchscreen.

  • Printing method: thermo-transfer

  • Resolution: 200 dpi

  • Max. print width: 108 mm - Max. length printing: 25,400 mm - Print speed: up to 152.4 m / sec.

  • Label roll diameter max. 203.2 mm

  • Processor: 32 - bit RISC CPU

  • Interfaces: RS232, USB 2.0, ETHERNET, USB host Memory: 128MB FLASH, 64MB SDRAM

  • Sensors: GAP, head open, black mark, ribbon encoder, ribbon end sensor - TSPL-EZ (universal firmware) programming language.

Price: 4.260,00 EUR, EXW factory, Slovenia

Standard production time: 4 to 6 weeks after downpayment (must be oficially confirmed before order)
