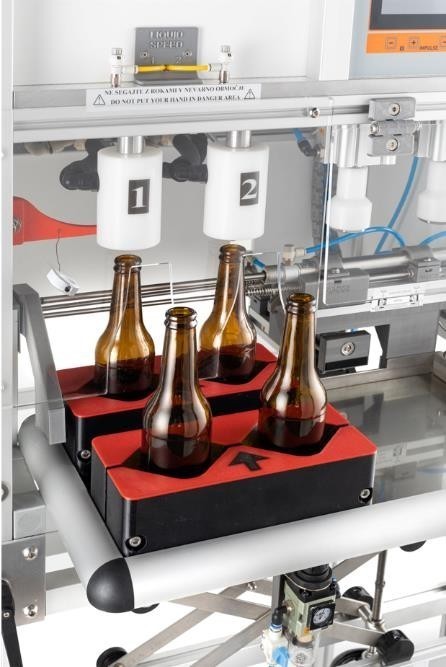

Two-line bottle filling machine DP-20/2 TOUCH
The Two-line mobile isobaric (counter-pressure) bottle filling machine DP-20/2 TOUCH allows to program 3 different filling volumes and use manual filling function for other volumes. Reference throughput is approximately 350-400 bottles of 0.33 liters per hour. Bottle closing is projescted for crown caps series Ø26 mm (optional Ø 29 mm).
Features
The device is manufactured in accordance with CE standards and has a built-in 5-inch LCD screen controlled by a microprocessor, with graphical display of the operation in four languages (slo, it, gb, de). It displays the current and total quantity of bottles produced, liters and operating time. Reports any errors, prevents operation without proper conditions, and malfunction, while offering a variety of manual settings and functions.
The housing is made of a combination of aluminum and stainless material. It has a built-in height adjustable work table with gauge to adjust to different heights of bottles.
(For carbonated drinks) minimum of 2.0 bar of constant pressure in the beer tank (from 1 to max 3 ° C), constant CO2 gas supply must be provided for the proper filling. 6.5 bar of constant air pressure is needed for the operation of the pneumatic cylinders.
Standout benefits
Easy handling;
Touch control panel;
Quick change of filling volume;
De oxidation of bottles,
Manual or automatic filling and capping;
Fast setting of different bottle sizes;
Sound and written notifications on the color LCD with a graphic display;
Easy LCD-guided cleaning…
Technical characteristic
Filling device dimensions:
Height: 1610 mm,
Depth: 680 mm,
Width: 700 mm
Weight: 46 Kg
Power supply:
Voltage: 110-240 V
El. power: 30 W,
El. current: 1,3 A,
Frequency: 50 Hz
El. protection: 10 A, (220-240 V)
Water protection: IP 55
Included in the package
2 x universal clamping bottle attachments - Ø 54 mm to Ø 69 mm, height of bottles 195 mm-320 mm (other dimensions can be produced by prior arrangement)
3 m insulated supply pipe 3/8 "with tank connection ½" - inner thread (the tank connection is provided by the buyer)
3 m food 3/8 "feed tube of Co2 gas
3 m pneumatic tube Ø 6 mm for air supply
spare parts-seals, fittings according to the list
samples of cleaners and disinfectants
air control group with condensate discharge filter and pressure relief valve
automatic feeding of bottles for closing by manual insertion of crown plugs
video operation - device test
video instructions on the USB stick
written instructions.
spare parts
Price: 7.395,00 EXW factory, Slovenia
Standard production time: 4 to 6 weeks after downpayment (must be oficially confirmed before order)
